Femtosecond Laser

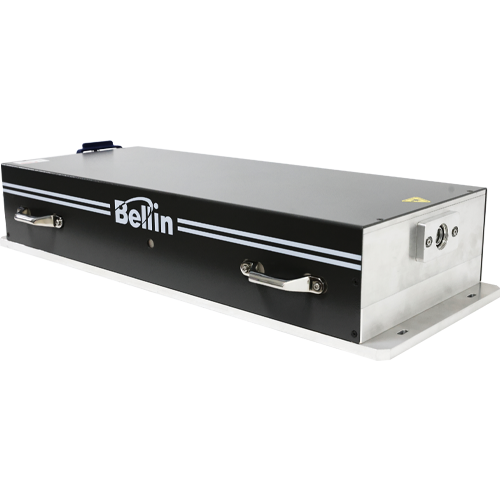

The Axinite series lasers utilize a dependable fiber seed source in conjunction with amplifiers to produce high-power infrared femtosecond laser output. The seed laser pulse is amplified using a high-gain fiber amplifier, decreasing its pulse duration to 500fs while ensuring M^2<1.3 beam quality. In addition, the laser offers multiple control functions for stable long-term operation.

Feature:
Compact, integrated design
Self-made seed source with automatic change point via SESAM
Burst pulse editing function
Pulse on demand (PSO function)
Ethernet communication, independent GUI, and remote diagnosis
Real-time data detection and recording function

Technical data

Model	Axinite IR	Axinite GR	Axinite UV
Wavelength	1030nm	515nm	343nm
Power Rate	10-100W	8-40W	5-30W
Single Pulse Power	Max.600μJ	40μJ@200KHz	37μ@800kHz
Pulse Frequency Rate	1Hz~2000kHz
Pulse Width	<500fs
Spot Mode	TEM00(M²<1.3)
Beam Diameter	(1.2~1.5)±0.2mm	2.5±0.2mm	2.0±0.2mm
Power Rate Stability	<1% RMS over 8 hours
Pulse-to-Pulse Stability	<3% RMS over 10 minutes
Spot Stability	<50μrad/ ℃
Beam Divergence	<2mrad(full angle)
Spot Roundness	>90%
Control Mode	Ethernet, Gate, Trigger
Cooling Method	Water cooling
Polarization Direction	Horizontal	Vertical	Horizontal
Polarization Ratio	>100:1
Ambient Temperature	15℃~35℃
Relative Humidity	10%～80%(non-condensing)
Preheat Timing	<30 minutes
Operating Voltage	90v～260V
Overall dimensions	780mm354mm134mm

Advantages and Applications of Femtosecond Laser

Femtosecond lasers produce a concentrated burst of energy in a very brief period. This results in ultrafast, high-intensity laser output that has various applications. In comparison, continuous wave lasers are limited in their peak powers when compared to these short laser pulses. Femtosecond lasers have the potential to be used in new ways due to their ability to deliver ultrafast, high-intensity output.

In industrial applications where ultrashort pulse laser pulses are used, such as material processing, ultrashort pulses are used to minimize thermal damage to materials. The laser pulses act as localized heat sources that quickly evaporate material at their focal spot without dispersing heat into surrounding areas.

Femtosecond lasers have an advantage for new applications due to their extremely short pulse duration. This makes it possible to observe and modify ultrashort processes found in biology or chemistry.
