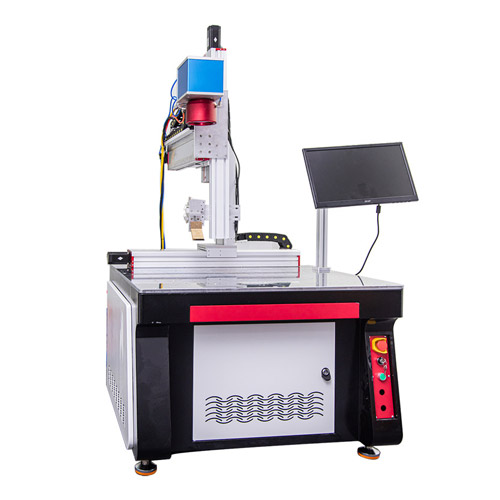

Platform Laser Welding Machine_AeeFar Airtronics Tech

Fiber galvanometer laser welding machine combines optical galvanometer scanning and pulsed laser to form a galvanometer welding machine. The laser head utilizes its built-in galvo mirror for scanning without driving the laser directly; while for welding purposes the galvanometer laser equipment concentrates its laser on workpiece via its high speed scanning galvanometer and then into focus for welding purposes.
This machine utilizes a high-speed scanning galvanometer to position the laser spot welding process; its speed can reach 7000mm/s; welding speeds can be as fast as 60mm/s, and production efficiency far surpasses ordinary laser spot welding methods. It is especially suited for precision spot welding of various small and thin-walled parts. Both galvanometer and laser can be controlled directly using dedicated software for laser welding applications.

Small focused spot diameter ensures welding with power density and processing range
The production efficiency is 4-10 times higher than that of the traditional laser spot welding machine
The water-cooling compact design is easy to be integrated to automated production line
The thermal deformation is extremely small and does not affect the internal electronic components or chemical composition performance of the product

Technical data

Laser power	2000W	3000W	6000W
Laser wavelength	1080±5nm
Laser source	Fiber laser
Operating mode	Continuous
Input voltage	AC380V
Aiming and positioning	Red light/(CCD optional)
Max speed	500mm/s
Cooling method	Water cooling
Fiber length	10/15m
Number of fibers	1
Working environment temperature range	5-35°C
Water chiller	2P	3P	5P
Water coolant	Pure water or distilled water

Feature

Laser welding technology is an innovative process with many unique characteristics: bright brightness, directivity, monochromaticity and coherence. Since its introduction, its applications in industrial processing have grown vastly; laser welding will undoubtedly become a ubiquitous manufacturing system solution in future manufacturing systems means.

The fiber galvanometer laser welding machines are a new model that offers both fixed and mobile processing functions. They utilize non-contact processing, ensuring smooth, tool wear-free production. The machines have adjustable laser beam energy levels and moving speed settings, and there are numerous welding processes available. As a result, they increase production efficiency, ensure consistent quality processing results, and provide economic and social benefits.

Characteristics of fiber laser scanner

1. The optical fiber transmission device can be easily attached to or detached from the host machine, allowing for easy positioning of the laser processing head assembly on both small and large workpieces. With CCD camera monitoring, precise positioning and easy observation are possible.

2. Laser focusing enables fast speed, large depth, deformed volumetric analysis, and high power density, which makes micro welding possible.

3. By focusing the laser beam, a very small light spot is created that can be accurately positioned for mass production purposes.
